Understanding Herdio Ceiling Speakers

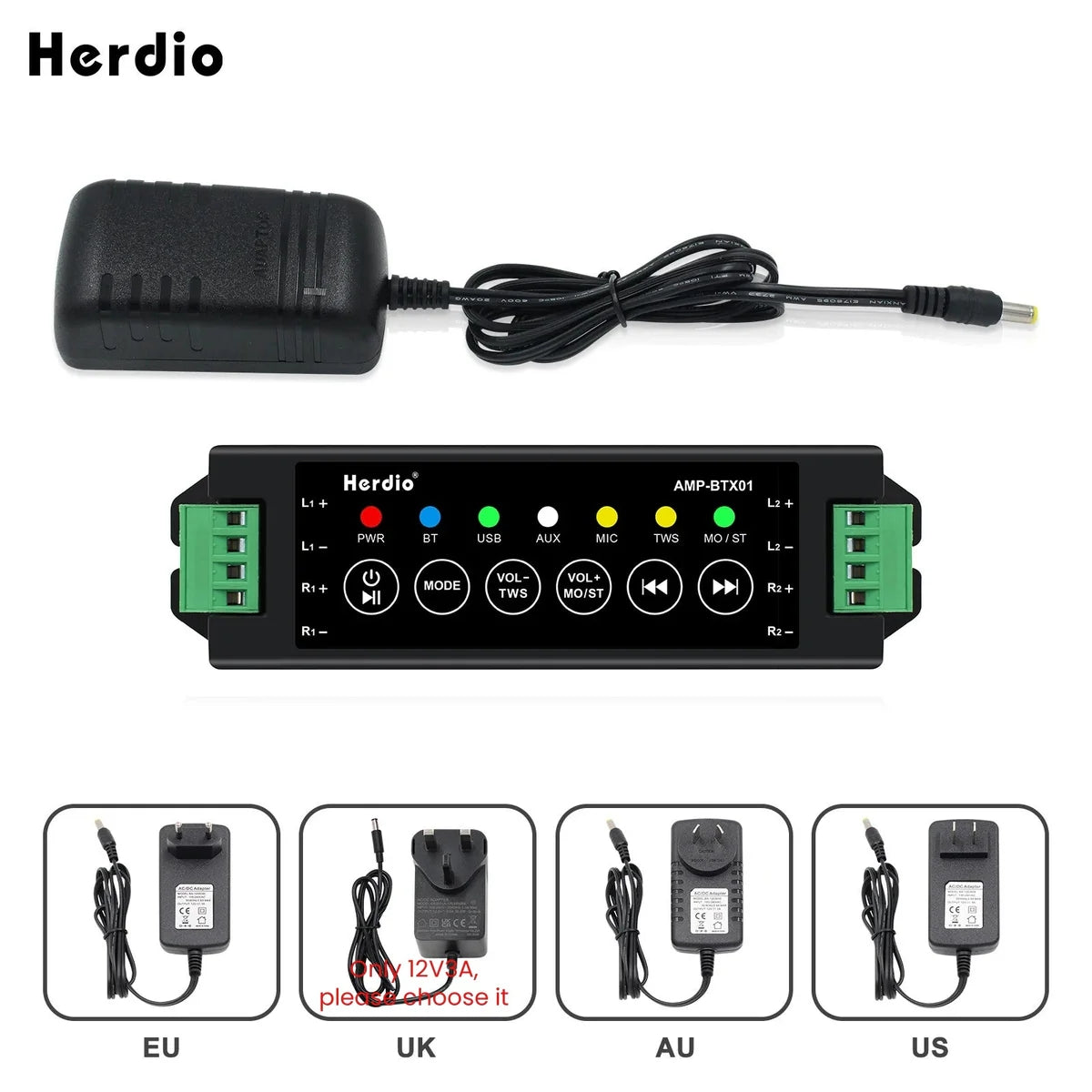

Herdio's ceiling speakers are passive, meaning they require an amplifier to function. To get started, you'll need to connect your amplifier to the speakers using speaker cables. You can use our provided amplifier or your own. The amplifier powers the system, and you can transmit audio through it.

Connecting to Herdio Speakers

You have two options for connecting your audio source. If you use our Bluetooth amplifier, simply pair it with your phone, tablet, or computer via Bluetooth for wireless audio streaming. Alternatively, you can use an Aux audio cable to connect devices like your TV or computer to the amplifier.

Multi-Speaker Setup

For multiple speakers to work together, your choice of amplifier is crucial. Herdio offers both 2-channel and 4-channel amplifiers. The 2-channel amplifier allows you to connect up to 2 speakers, while the 4-channel amplifier accommodates up to 4 speakers. Choose the right amplifier based on your room size and audio needs.

Selecting the Right Speaker Size

To determine the ideal speaker size for your room, measure its dimensions. Herdio recommends:

- For rooms up to 430 square feet, choose 4" ceiling speakers (a pair).

- For rooms between 431-645 square feet, opt for 5.25" ceiling speakers (a pair).

- For larger rooms (645-1075 square feet), consider two pairs (4 speakers) of 5.25" speakers.

- Rooms between 1076-1292 square feet are best served by 6.5" ceiling speakers (a pair).

Most indoor spaces, such as bathrooms, kitchens, bedrooms, living rooms, and covered porches, are suitable for round ceiling speakers (418, 528, 818), or square ceiling speakers (5030 and 5022) for a more angular design. For damp areas like bathrooms or kitchens, lightweight marine ceiling speakers like the 4-inch 5104 and 6.5-inch 6005 are excellent choices. These marine speakers are also perfect for mobile spaces like RVs, golf carts, and boats.

Installation

The installation process varies based on the speaker model. For round speakers (418, 528, 818), you'll secure them to the ceiling using screws and clips, then reattach the grill. The 628 model is held in place by spring clips. The 5104 and 6005 marine speakers are screwed in place.

Most indoor spaces, such as bathrooms, kitchens, bedrooms, living rooms, and covered porches, are suitable for round ceiling speakers (418, 528, 818), or square ceiling speakers (5030 and 5022) for a more angular design. For damp areas like bathrooms or kitchens, lightweight marine ceiling speakers like the 4-inch 5104 and 6.5-inch 6005 are excellent choices. These marine speakers are also perfect for mobile spaces like RVs, golf carts, and boats.

Round vs Square Speakers

While most ceiling speakers are round, Herdio offers square options for those with angular designs or square downlights. Sound quality remains consistent, and the choice between round and square is largely a matter of personal preference.

Stereo Sound

Herdio's in-ceiling speakers are "mono," meaning they output either left or right channels. You can create a left-right stereo pair using two mono in-ceiling speakers or use them individually. To achieve stereo sound with a single speaker, consider pairing it with our 16bt in-wall amplifier.

Speaker Comparison

We've compared four Herdio round ceiling speaker models based on grill flushness, sound quality, ease of installation, and wattage. The 818 model stands out for its sound quality and wattage. It also features switches for midrange and bass crossover adjustments.

In summary, ceiling speakers can be installed in a bathroom if they meet specific moistureresistant and waterproof criteria. Choosing the right speakers and proper placement, along with good ventilation and regular mainteHerdio's ceiling speakers offer an affordable and high-quality audio solution for your home. By understanding the features, amplifier options, and speaker sizes, you can select the perfect setup for your space. Feel free to reach out for assistance in choosing the right Herdio speakers for your needs.nance, can help ensure the longevity and performance of bathroom speakers while minimizing the risk of moisture-related damage.
